Dealership Clients

Each dealership branch (e.g. Bacolod, Makati, Cebu) gets its own Keycloak client. This allows each Odoo instance to authenticate independently while sharing the same SSO session.

:::info Portal client vs dealership clients The Portal client (portal-odoo) is covered in the Portal Client guide. This page covers the per-dealership clients that each Odoo dealership instance uses. :::

---

Step 1: Create the client

1. Navigate to Clients in the sidebar.
2. Click Create client.
3. Fill in:

Field	Value	Example
Client type	OpenID Connect	Always OIDC for Odoo
Client ID	<dealership-code>-dealership	bacolod-dealership
Name	UAAGI <City> Dealership	UAAGI Bacolod Dealership
Description	Brand list	Multi-brand dealership: FOTON, Chery, Jetour, BAIC, Lynk & Co, RADAR

4. Click Next, then Save.

:::caution Client ID naming convention The Client ID must match the keycloak_client_id field on the corresponding uaagi.dealership record in Odoo. This is how Odoo maps the allowed_dealerships token claim to dealership records. :::

---

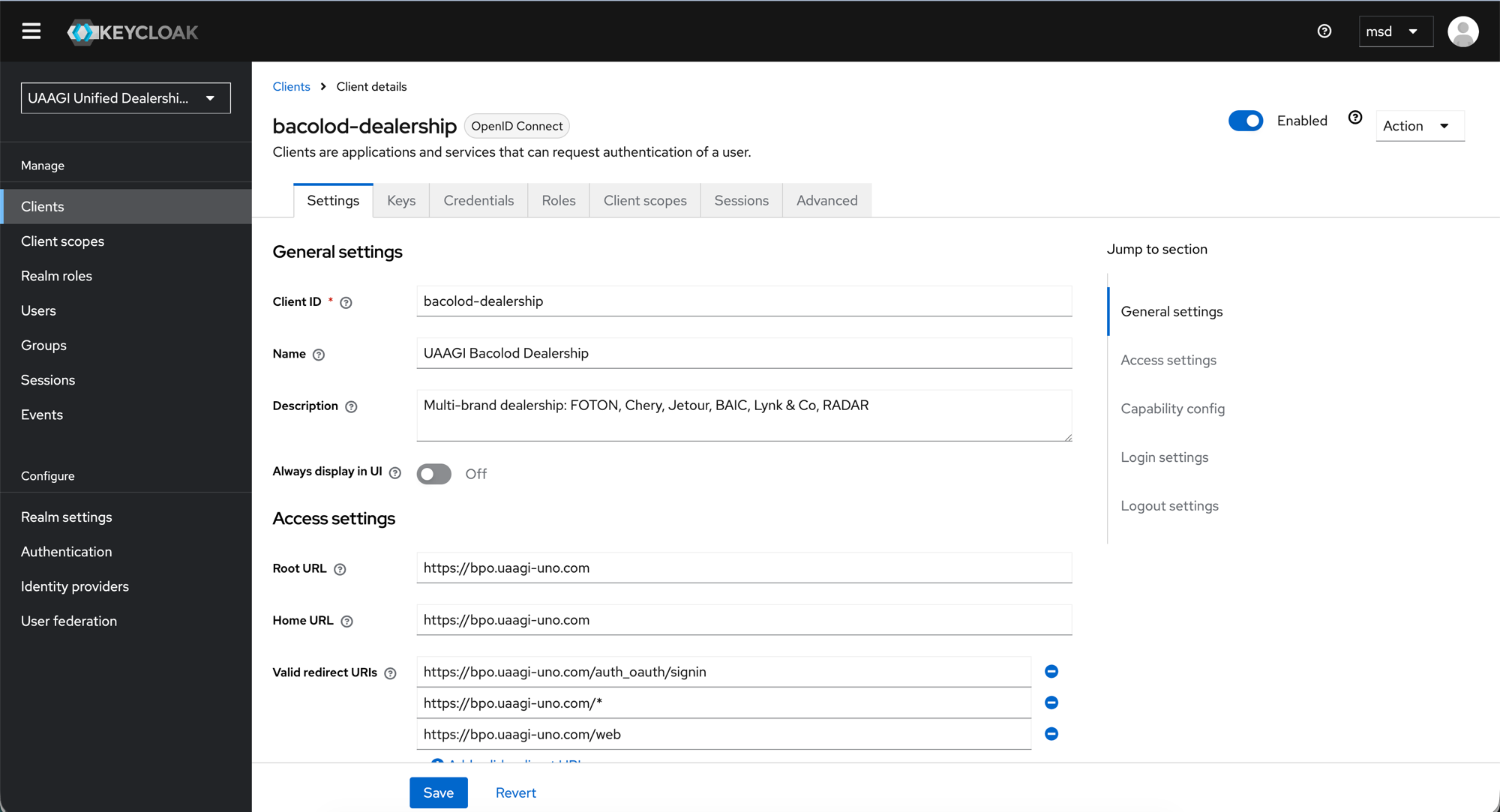

Step 2: Settings tab — General & Access settings

Open the newly created client and navigate to the Settings tab.

General settings

Field	Value
Always display in UI	Off

Access settings

Field	Value	Notes
Root URL	https://<subdomain>.uaagi-uno.com	The dealership's Odoo instance URL
Home URL	https://<subdomain>.uaagi-uno.com	Same as Root URL
Valid redirect URIs	See table below	Where Keycloak is allowed to redirect after login

Valid redirect URIs (add all three):

URI	Purpose
https://<subdomain>.uaagi-uno.com/auth_oauth/signin	Odoo's OAuth callback endpoint
https://<subdomain>.uaagi-uno.com/*	Wildcard fallback
https://<subdomain>.uaagi-uno.com/web	Direct web access

---

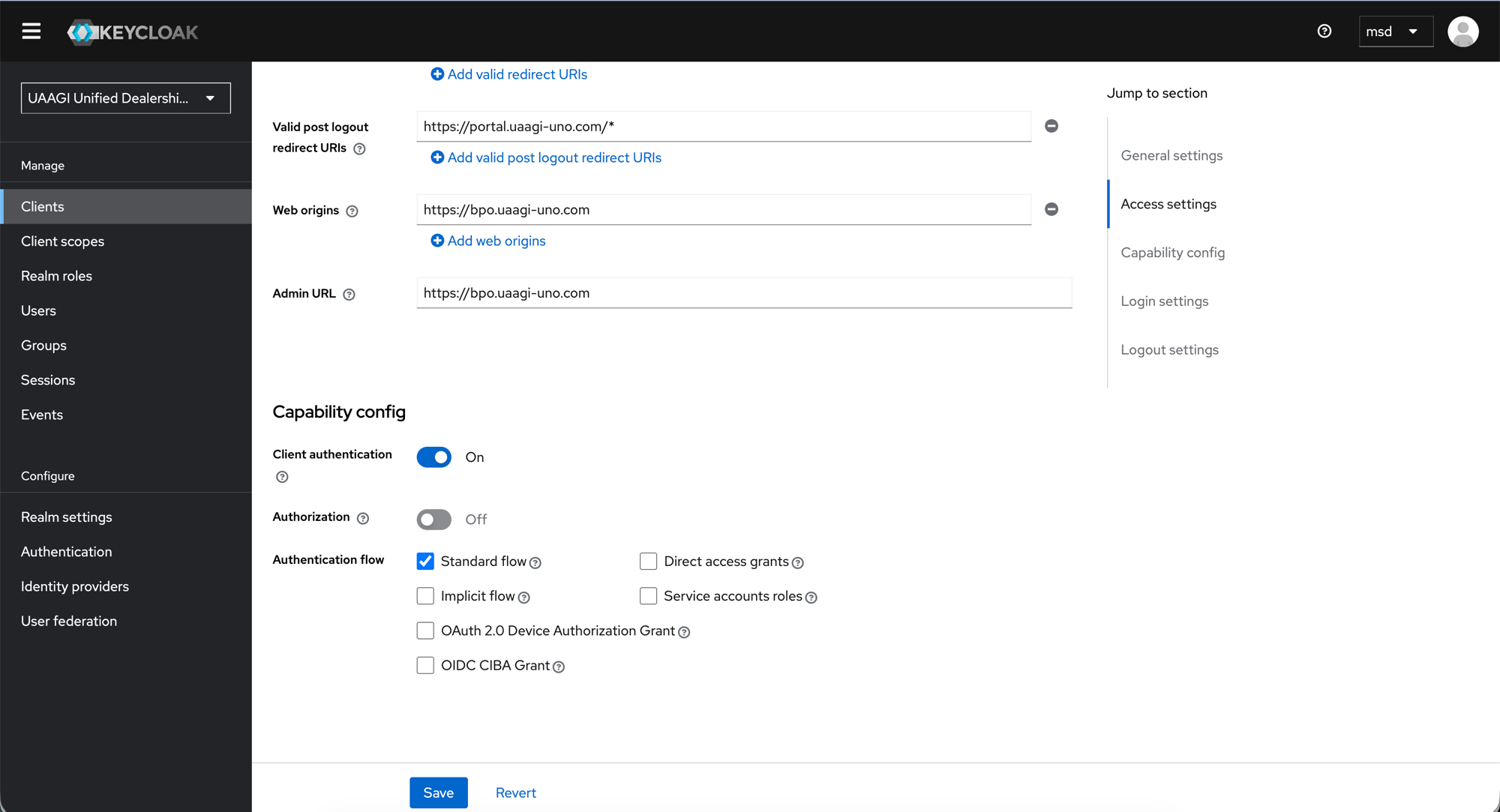

Step 3: Settings tab — Post-logout, Web origins & Capability config

Scroll down on the Settings tab.

Post-logout redirect URIs

URI	Purpose
https://portal.uaagi-uno.com/*	Allows logout to redirect back to the portal

:::warning Portal URI is required Without https://portal.uaagi-uno.com/* in the post-logout redirect URIs, users will see an "Invalid redirect" error when logging out from a dealership and being sent back to the portal. :::

Web origins & Admin URL

Field	Value
Web origins	https://<subdomain>.uaagi-uno.com
Admin URL	https://<subdomain>.uaagi-uno.com

Capability config

Setting	Value	Notes
Client authentication	On	This is a confidential client (has a secret)
Authorization	Off	Not using Keycloak's fine-grained authorization
Standard flow	Checked	Authorization Code flow — required for Odoo
Implicit flow	Unchecked	Not used
Direct access grants	Unchecked	No password-grant logins
Service accounts roles	Unchecked	Not a machine-to-machine client
OAuth 2.0 Device Authorization Grant	Unchecked
OIDC CIBA Grant	Unchecked

---

Step 4: Login & Logout settings

Still on the Settings tab, scroll to the bottom.

Login settings

Setting	Value
Login theme	(default — Choose...)
Consent required	Off
Display client on screen	Off

Logout settings

Setting	Value	Notes
Front channel logout	Off	Odoo handles logout via redirect, not front-channel
Backchannel logout URL	(empty)	Not configured — Odoo uses redirect-based logout
Backchannel logout session required	On	Default, ensures session context in backchannel calls
Backchannel logout revoke offline sessions	Off	No offline tokens in use

Click Save.

---

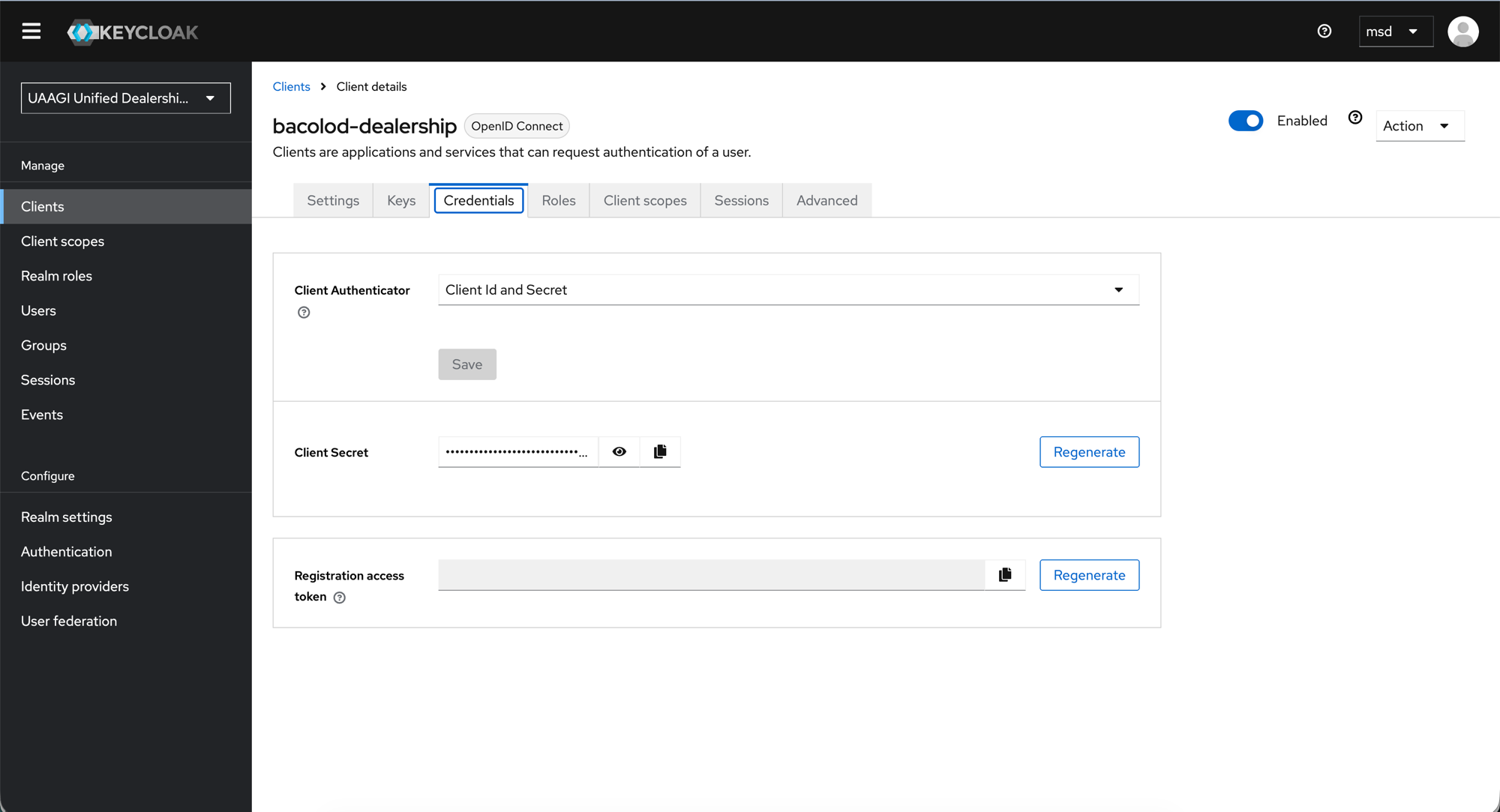

Step 5: Credentials tab

Navigate to the Credentials tab.

Field	Value
Client Authenticator	Client Id and Secret
Client Secret	Auto-generated — click the copy icon to copy

:::danger Keep the secret secure Copy the Client Secret and store it securely. You will need it when configuring the OAuth provider in Odoo (see Odoo Configuration). Never commit secrets to version control. :::

To rotate a compromised secret, click Regenerate and update the corresponding Odoo OAuth provider record immediately.

---

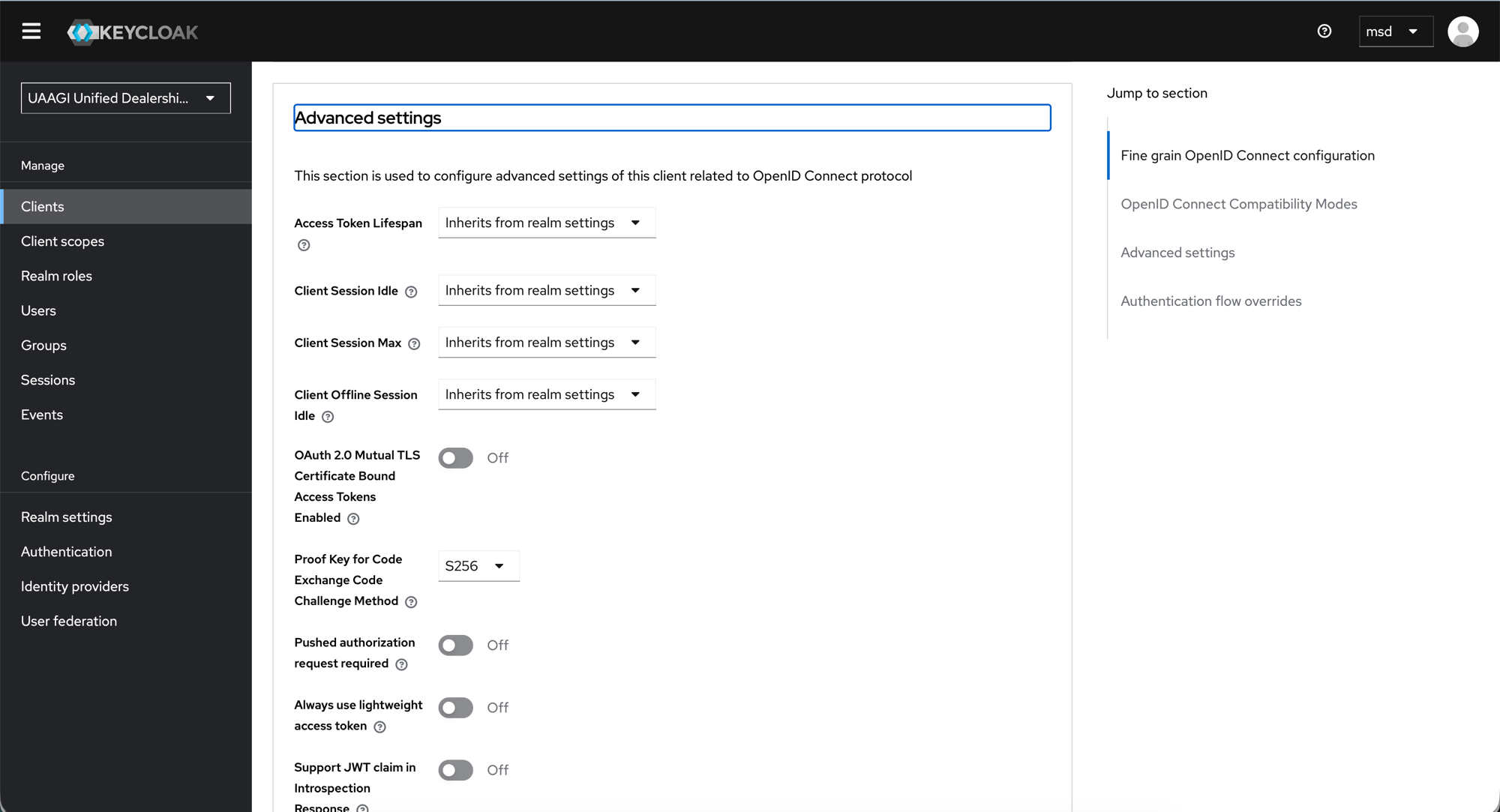

Step 6: Advanced tab — PKCE

Navigate to the Advanced tab, then scroll to the Advanced settings section.

Setting	Value	Notes
Access Token Lifespan	Inherits from realm settings	Uses the realm's 30-minute default
Client Session Idle	Inherits from realm settings
Client Session Max	Inherits from realm settings
Client Offline Session Idle	Inherits from realm settings
Proof Key for Code Exchange Code Challenge Method	S256	Required — enables PKCE

:::warning PKCE must be S256 The Odoo uaagi_dealership_portal module generates PKCE code_challenge / code_verifier pairs using SHA-256. If this is not set to S256, the authorization code exchange will fail with an invalid_grant error. :::

All other Advanced settings should remain at their defaults (Off).

Click Save.

---

Repeat for each dealership

Create a client for every dealership branch in the system. The naming convention is:

<city-or-code>-dealership

Examples: makati-dealership, cebu-dealership, davao-dealership, bacolod-dealership

Each client follows the exact same configuration — only the Client ID, Name, Description, and URLs change.

:::tip Bulk provisioning For large deployments, the uaagi_keycloak_setup.py script in the uaagi_dealership_portal module can automate client creation via the Keycloak Admin REST API. :::

---

Quick checklist

Use this checklist when adding a new dealership client:

• Client type: OpenID Connect
• Client ID matches Odoo's keycloak_client_id
• Root URL / Home URL set to dealership's Odoo URL
• Valid redirect URIs include /auth_oauth/signin and /*
• Post-logout redirect URIs include https://portal.uaagi-uno.com/*
• Client authentication: On (confidential)
• Standard flow: checked (only)
• PKCE: S256
• Client secret copied to Odoo OAuth provider record

---

What's next

• Protocol Mappers — configure the custom attribute mappings that send dealership assignments in the token
• User Management — create users and assign them to dealerships
