OAuth Provider

The Portal ships an extension of Odoo's stock auth_oauth.provider form so the extra fields Keycloak needs — token endpoint, logout endpoint, flow type, JWKS URI — become first-class configuration instead of something to be set via database scripts.

This page covers what those fields are and how they're used. The procedural step-by-step for wiring the Portal to Keycloak lives in Keycloak ▸ Odoo Configuration — that's the page to follow during setup. This page is the field reference.

Audience

System administrators configuring or troubleshooting OAuth on the Portal instance.

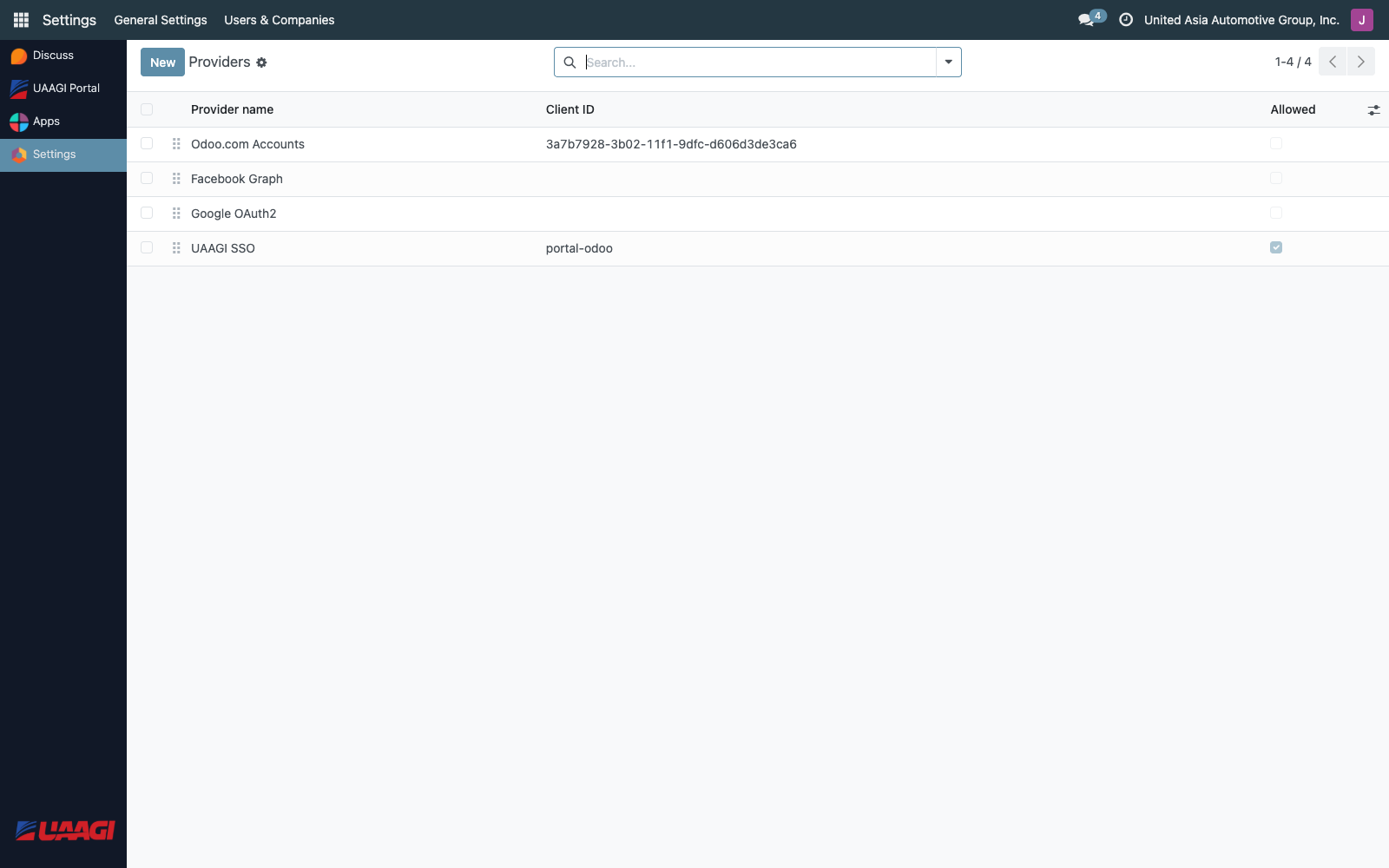

Opening the provider list

The OAuth Providers list is not under the UAAGI Portal menu — it's in Odoo's standard settings:

Settings ▸ Users & Companies ▸ OAuth Providers

The Portal adds a Flow column to the list so you can tell at a glance whether each provider is configured as Authorization Code or Implicit.

The provider form

Open the Keycloak provider to see the extended form:

Standard fields (unchanged)

Field	Example
Provider Name	Keycloak
Login button label	Sign in with UAAGI SSO
Client ID	portal-odoo
Authorization URL	https://sso.uaagi-uno.com/realms/uaagi-dealerships/protocol/openid-connect/auth
Scope	openid email profile
UserInfo URL	https://sso.uaagi-uno.com/realms/uaagi-dealerships/protocol/openid-connect/userinfo
Enabled	✓

Fields added by this module

Field	Purpose
Client Secret	The confidential client secret from Keycloak. Stored as a password field. Only used when the Flow is authorization_code.
Token Endpoint	https://sso.uaagi-uno.com/realms/uaagi-dealerships/protocol/openid-connect/token — where the Portal exchanges the authorization code for an access token. Required for authorization_code flow.
Logout Endpoint	https://sso.uaagi-uno.com/realms/uaagi-dealerships/protocol/openid-connect/logout — where the Portal redirects on logout so the Keycloak session is actually terminated. If left blank, the controller tries to derive it from the Authorization URL by swapping /auth for /logout.
Token Map	Mapping of non-standard token claims to Odoo fields (Odoo core field — used for edge cases).
Flow	Either authorization_code or implicit. Keycloak with PKCE requires authorization_code.
JWKS URI	https://sso.uaagi-uno.com/realms/uaagi-dealerships/protocol/openid-connect/certs — used for local JWT signature verification.

Authorization Code vs Implicit flow

The Portal supports both flows, selectable via the Flow field:

Flow	When to use	How it works
Authorization Code (with PKCE)	Keycloak, Auth0, any modern OpenID provider	Portal redirects to Keycloak with a code_challenge. Keycloak redirects back with a code. Portal exchanges the code + code_verifier for tokens at the token endpoint.
Implicit	Legacy OAuth 2.0 providers	Provider returns the access token directly in the URL fragment. No token exchange round-trip. Insecure by modern standards.

The Portal is set to authorization_code in production. The Implicit flow support exists for backward compatibility.

PKCE

When Flow is authorization_code, the Portal automatically:

1. Generates a 32-byte random code_verifier.
2. Derives a code_challenge = base64url(sha256(code_verifier)).
3. Stores the verifier in the Odoo session.
4. Sends code_challenge + code_challenge_method=S256 on the authorization request.
5. Sends code_verifier during the token exchange.

The Keycloak client must have PKCE S256 enabled for this to succeed — see Portal Client for the Keycloak side.

The Bearer userinfo override

Odoo's stock OAuth client sends the access token as a query parameter when calling the userinfo endpoint (GET /userinfo?access_token=...). Keycloak rejects this as invalid_request — it requires the token in the Authorization: Bearer header.

The Portal module overrides _auth_oauth_rpc on res.users to send the token as a Bearer header. No configuration is required to enable this — it applies to every OAuth provider on a Portal instance.

Fast checks when OAuth breaks

A handful of classic failure modes and where to look:

Symptom	Likely cause
oauth_error=2 after sign-in	Token exchange failed. Check Client Secret, Token Endpoint URL, PKCE configuration.
User can log in but has no dealerships	allowed_dealerships claim is empty or references unknown client IDs. Check User Management.
invalid_request from userinfo	Shouldn't happen on Portal (Bearer override), but does on stock Odoo instances — install this module there too.
Logout doesn't actually log out of Keycloak	Logout Endpoint is blank and the Authorization URL doesn't contain /protocol/openid-connect/auth. Set Logout Endpoint explicitly.

For a full troubleshooting flow see Keycloak ▸ Testing & Troubleshooting.
